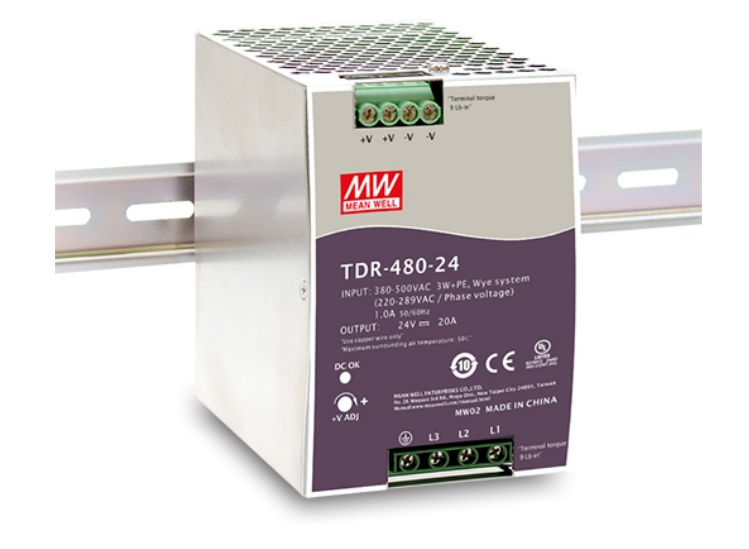

TDR-480 Series
480W Three Phase Industrial DIN RAIL with PFC Function
Features
Three-phase 340~550VAC wide range input
Width only 85.5mm
Built-in active PFC function compliance to EN61000-3-2
High efficiency 93% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
Optional DC OK relay contact
3-year warranty
TDR-480 series
| TDR-480-24 | TDR-480-48 | ||
|---|---|---|---|
| OUTPUT | DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 20A | 10A | |
| CURRENT RANGE | 0 ~ 20A | 0 ~ 10A | |
| RATED POWER | 480W | 480W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24 ~ 28V | 48 ~ 55V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | |
| SETUP, RISE, | 1200ms, 60ms/400VAC 800ms, 60ms/500VAC at full load | ||
| HOLD UP TIME | 20ms / 400VAC 20ms / 500VAC at full load | ||
| INPUT | VOLTAGE RANGE | Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF≧0.9/400VAC PF≧0.88/500VAC at full load | ||
| EFFICIENCY (Typ.) | 92.5% | 93% | |
| AC CURRENT (Typ.) | 0.85A/400VAC 0.7A/500VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A | ||
| LEAKAGE CURRENT | < 3.5mA / 530VAC | ||
