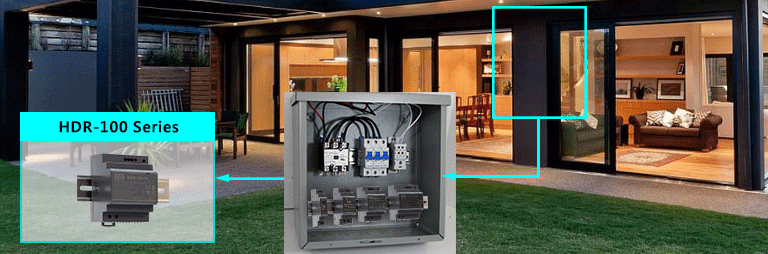

HDR-100 series

85 ~ 100W Ultra Slim Step Shape DIN Rail

Features

Ultra slim design with 70mm(4SU) width
Universal Input 85~264VAC (277VAC operational)
No load power consumption < 0.3W
Isolation class 2

Pass LPS (Limited power source)

DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage

Cooling by free air convection (working temperature: -30~+70C)

DIN rail TS-35/7.5 or 15 mountable

LED indicator for power on

3-year warranty

HDR-100 Series Specs

MODEL		HDR-100-12	HDR-100-12N	HDR-100-15	HDR-100-15N
OUTPUT	DC VOLTAGE	12V	12V	15V	15V
	RATED CURRENT	7.1A	7.5A	6.13A	6.5A
	CURRENT RANGE	0 ~ 7.1A	0 ~ 7.5A	0 ~ 6.13A	0 ~ 6.5A
	RATED POWER	85.2W	90W	92W	97.5W
	RIPPLE & NOISE (max.)	120mVp-p	120mVp-p	120mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE - Pass LPS	12 ~ 13V	12 ~ 13V	15 ~ 17V	15 ~ 17V
	VOLTAGE ADJ. RANGE - Non LPS	12~ 13.8V	12~ 13.8V	13.5 ~ 18V	13.5 ~ 18V
	VOLTAGE TOLERANCE	±2.0%	±2.0%	±1.0%	±1.0%
	LINE REGULATION	±1.0%	±1.0%	±1.0%	±1.0%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
	HOLD UP TIME (Typ.)	30ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
	FREQUENCY RANGE	47 ~ 63Hz	47 ~ 63Hz	47 ~ 63Hz	47 ~ 63Hz
	EFFICIENCY (Typ.)	88%	88%	89%	89%
	AC CURRENT (Typ.)	3A/115VAC 1.6A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 35A/115VAC 70A/230VAC
Specs		Download PDF	Download PDF	Download PDF	Download PDF

MODEL		HDR-100-24	HDR-100-24N	HDR-100-48	HDR-100-48N
OUTPUT	DC VOLTAGE	24V	24V	15V	15V
	RATED CURRENT	3.83A	4.2A	1.92A	2.1A
	CURRENT RANGE	0 ~ 3.83A	0 ~ 4.2A	0 ~1.92A	0 ~ 2.1A
	RATED POWER	92W	100.8W	92.2W	100.8W
	RIPPLE & NOISE (max.)	150mVp-p	150mVp-p	240mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE - Pass LPS	24 ~ 25.5V	24 ~ 25.5V	48 ~ 48.7V	48 ~ 48.7V
	VOLTAGE ADJ. RANGE - Non LPS	21.6 ~ 29V	21.6 ~ 29V	43.2 ~ 55.2V	43.2 ~ 55.2V
	VOLTAGE TOLERANCE	±2.0%	±2.0%	±1.0%	±1.0%
	LINE REGULATION	±1.0%	±1.0%	±1.0%	±1.0%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
	HOLD UP TIME (Typ.)	30ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
	FREQUENCY RANGE	47 ~ 63Hz	47 ~ 63Hz	47 ~ 63Hz	47 ~ 63Hz
	EFFICIENCY (Typ.)	90%	90%	90%	90%
	AC CURRENT (Typ.)	3A/115VAC 1.6A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 35A/115VAC 70A/230VAC
