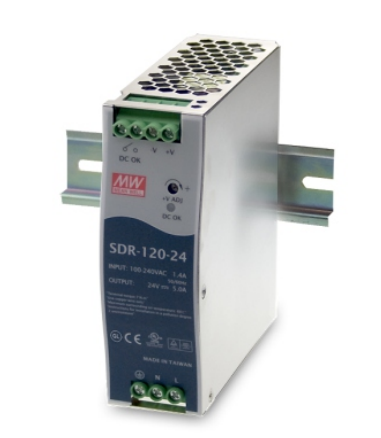

SDR-120 series

120W Single Output Industrial DIN RAIL with PFC Function

Features

High efficiency 90% and low power dissipation

150% peak load capability

Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

UL 508(industrial control equipment)

EN61000-6-2(EN50082-2) industrial immunity level

Built-in DC OK relay contact

100% full load burn-in test

3-year warranty

SDR-120 Series Specs

MODEL		SDR-120-12	SDR-120-24	SDR-120-48
OUTPUT	DC VOLTAGE	12V	24V	48V
	RATED CURRENT	10A	5A	2.5A
	CURRENT RANGE	0 ~ 10A	0 ~ 5A	0 ~ 2.5A
	RATED POWER	120W	120W	120W
	PEAK CURRENT	15A	7.5A	3.75A
	PEAK POWER	180W (3 sec.)
	RIPPLE & NOISE (max.)	100mVp-p	100mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	12 ~ 14V	24 ~ 28V	48 ~ 55V
	VOLTAGE TOLERANCE	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
	HOLD UP TIME (Typ.)	20ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	88 ~ 264VAC 124 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz	47 ~ 63Hz	47 ~ 63Hz
	POWER FACTOR (Typ.)	0.93/230VAC 0.96/115VAC at full load
	EFFICIENCY (Typ.)	89%	91%	90.5%
	AC CURRENT (Typ.)	1.4A/115VAC 0.7A/230VAC
	INRUSH CURRENT (Typ.)	35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	<1mA/ 240VAC
Specs		Download PDF	Download PDF	Download PDF
