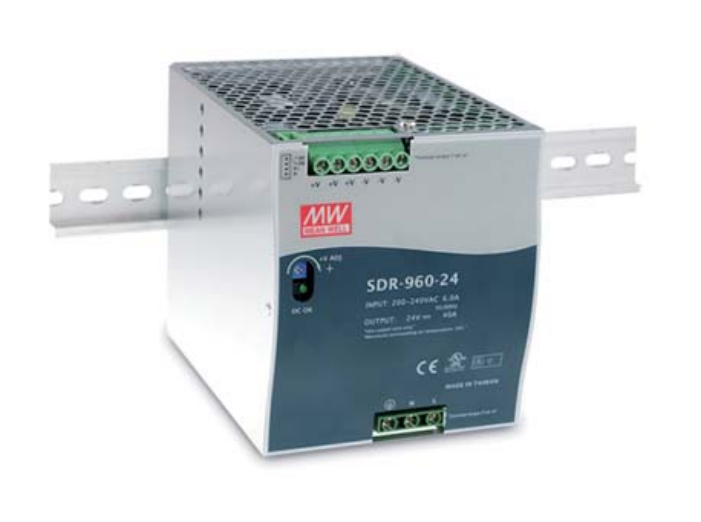

SDR-960 Series
960W Single Output Industrial DIN RAIL with PFC Function
NRCS LOA APPROVED
|
|
Features
AC input 180~264VAC only
130% peak load capability
110mm slim design
Built-in active PFC function compliance to EN61000-3-2
High efficiency 94% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
Current sharing up to 3840W(3+1)
Built-in DC OK relay contact
100% full load burn-in test
3-year warranty
SDR-960 Series Specs
| SDR-960-24 | SDR-960-48 | ||
|---|---|---|---|
| OUTPUT | DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 40A | 20A | |
| CURRENT RANGE | 0 ~ 40A | 0 ~ 20A | |
| RATED POWER | 960W | 960W | |
| PEAK CURRENT | 52A | 26A | |
| PEAK POWER | 1248W (3sec.) | ||
| RIPPLE & NOISE (max.) | 180mVp-p | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 24 ~ 28V | 48 ~ 55V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 100ms/230VAC at full load | ||
| HOLD UP TIME (Typ.) | 14ms/230VAC at full load | ||
| INPUT | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.95/230VAC at full load | ||
| EFFICIENCY (Typ.) | 94% | 94% | |
| AC CURRENT (Typ.) | 6A/230VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A/ 230VAC | ||
| LEAKAGE CURRENT | < 3.5mA/ 240VAC | ||
