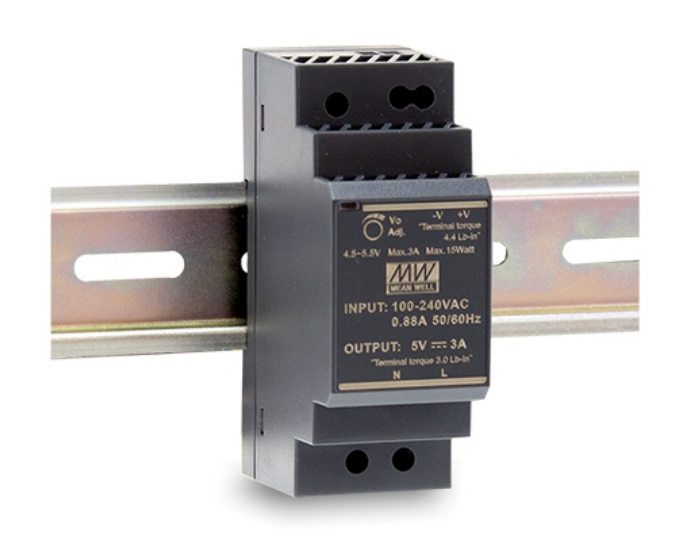

HDR-30 series

30W Ultra Slim Step Shape DIN Rail

Features

Ultra slim design with 35mm(2SU) width
Universal Input 85~264VAC (277VAC operational)
No load power consumption < 0.3W
Isolation class 2

Pass LPS (Limited power source)

DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage

Cooling by free air convection (working temperature: -30~+70C)

DIN rail TS-35/7.5 or 15 mountable

LED indicator for power on

3-year warranty

HDR-30 Series Specs

MODEL		HDR-30-5	HDR-30-12	HDR-30-15	HDR-30-24	HDR-30-48
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	48V
	RATED CURRENT	3A	2A	2A	1.5A	0.75A
	CURRENT RANGE	0 ~ 3A	0 ~ 2A	0 ~ 2A	0 ~ 1.5A	0 ~ 0.75A
	RATED POWER	15W	24W	30W	36W	36W
	RIPPLE & NOISE (max.)	80mVp-p	120mVp-p	120mVp-p	150mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	4.5 ~ 5.5V	10.8 ~ 13.8V	13.5 ~ 18V	21.6 ~ 29V	43.2 ~ 55.2V
	VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load
	HOLD UP TIME (Typ.)	30ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
	FREQUENCY RANGE	47 ~ 63Hz	47 ~ 63Hz	47 ~ 63Hz	47 ~ 63Hz	47 ~ 63Hz
	EFFICIENCY (Typ.)	82%	88%	89%	89%	90%
	AC CURRENT (Typ.)	0.88A/115VAC 0.48A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 25A/115VAC 45A/230VAC
Specs		Download PDF	Download PDF	Download PDF	Download PDF	Download PDF
